Managing Your Servers Remotely using the RSAT Tools

In this day and age of virtualization it is not that it is getting harder to sit down at a server to administer it… it is just getting easier to administer it remotely.  Where it does get easier is when you have several servers – often a mix of physical and virtual – that you need to manage.  Sure, you can still sit down at the physical servers… you could even open an RDP (Remote Desktop Protocol) session to administer them individually from your desktop.  However with each of those you are going to have to manage them all individually.

Enter the Remote Server Administration Toolkit (RSAT).

Unless you are using System Center to administer your servers, chances are you are either using PowerShell or, more likely at this point, MMC (Microsoft Management Console) consoles.  As we learned in Microsoft Windows 2000 Server, MMC consoles can connect to remote servers (or desktops) as long as Windows Remote Management (WinRM) is enabled (Actually WinRM and the Windows Firewall were only introduced in Windows Server 2003 R2 if memory serves, but MMC consoles were remoteable Smile).

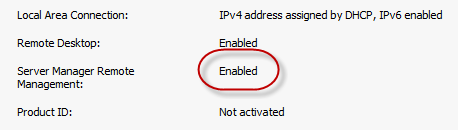

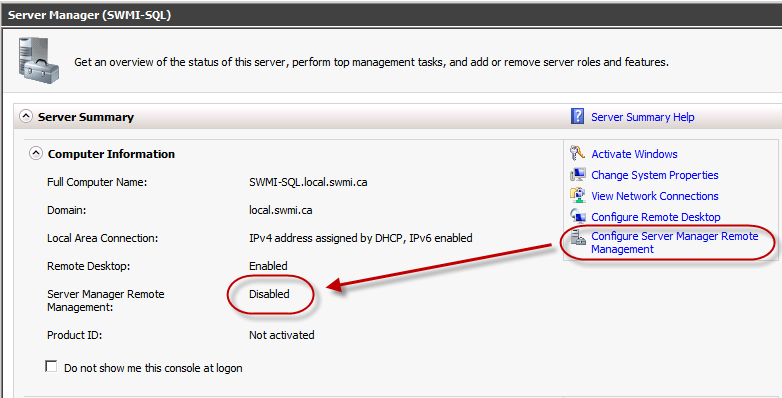

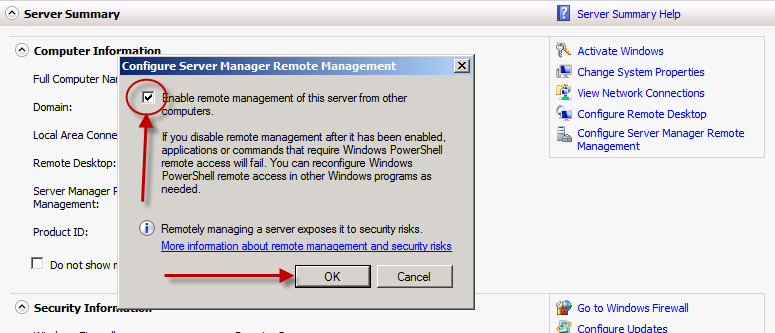

You can enable WinRM in Windows Server 2008 R2 from the Server Manager main screen (as shown):




(Note: For those of you running Server Core installations… good for you!  you can do all of this with a simple command line: WinRM /quickconfig)

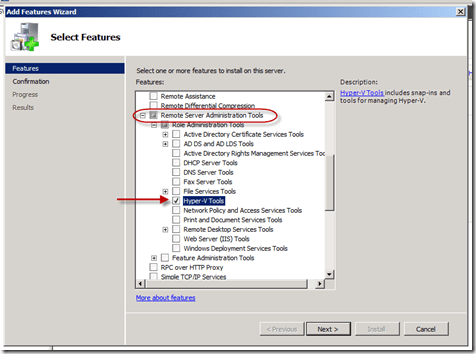

Now that we can remotely manage our servers, we can do so from any Windows Server 2008 R2 box by adding the appropriate feature from the Add Feature Wizard:


I should mention that you will not be able to manage systems on which you do not have credentials, and although the RSAT tools can work in a workgroup, they are much more fluid and trouble-free in a domain environment.  Also remember that adding the role or feature under RSAT does not install the actual role or feature, only the consoles required to manage them.

This is great for administrators who want to manage their servers remotely from another server… but what about managing them from your desktop?  There’s a simple solution for that.  Simply download the Remote Server Administration Tools (RSAT) for Windows 7 (http://www.microsoft.com/download/en/details.aspx?id=7887) from the Microsoft Download Center.  Using another version of Windows?  There is an RSAT download available for WIndows Vista, but if you are still running Windows XP then I am afraid you are out of luck (…and have 777 days until #EndOfDaysXP!).

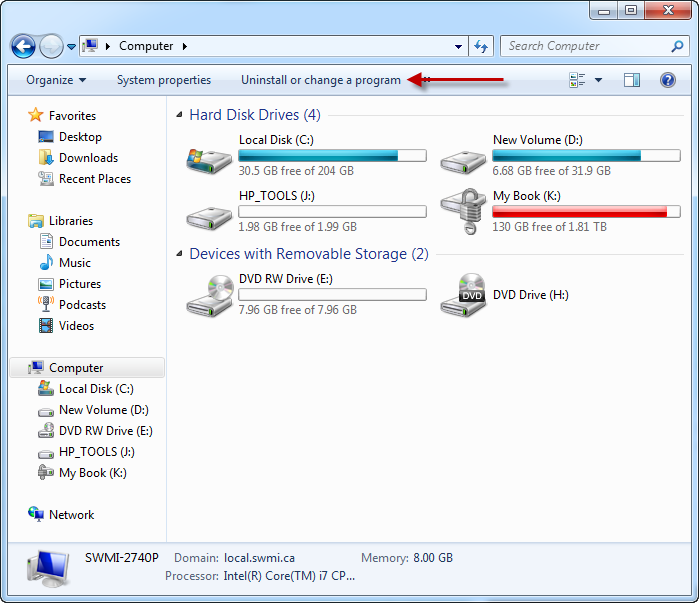

Once you have downloaded and installed RSAT into your Windows 7 machine you will see no difference.  However if you go to Turn Windows features on or off, things start to change.  To get there, open Windows Explorer and  navigate to Computer.  If you do not see the option to Uninstall or change a program chances are you have not clicked on Computer.

SNAGHTML562eaf6

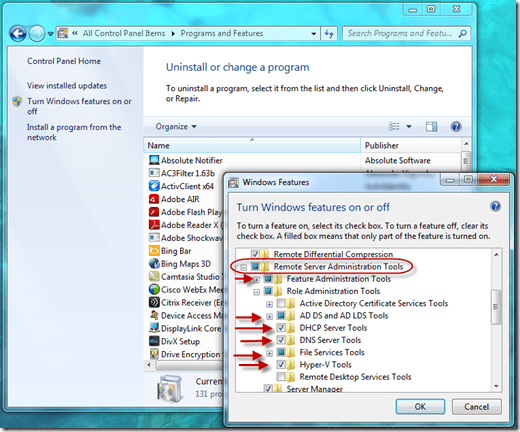

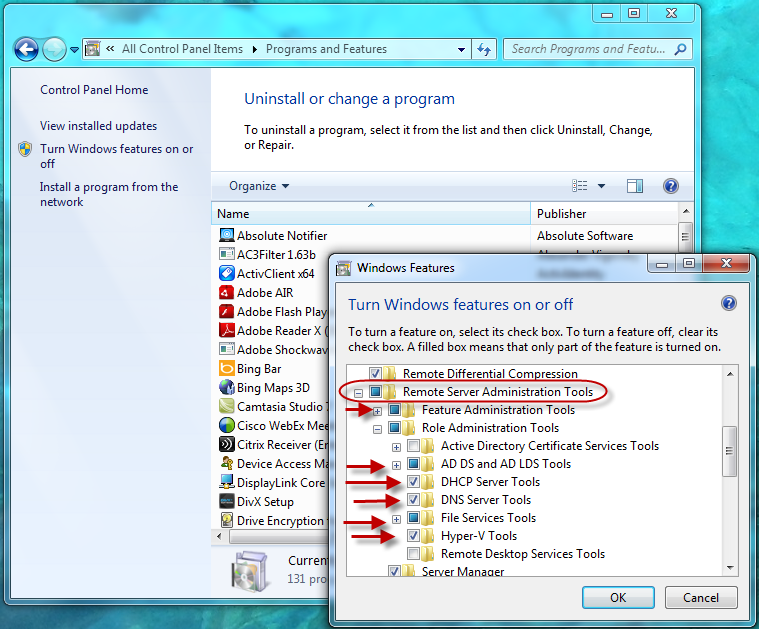

You should see a list of your installed programs on the right, but to the left there should see an option ‘Turn Windows features on or off (shown).  Click there.

SNAGHTML5655fe7

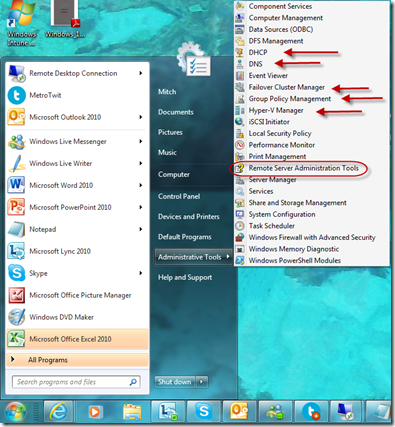

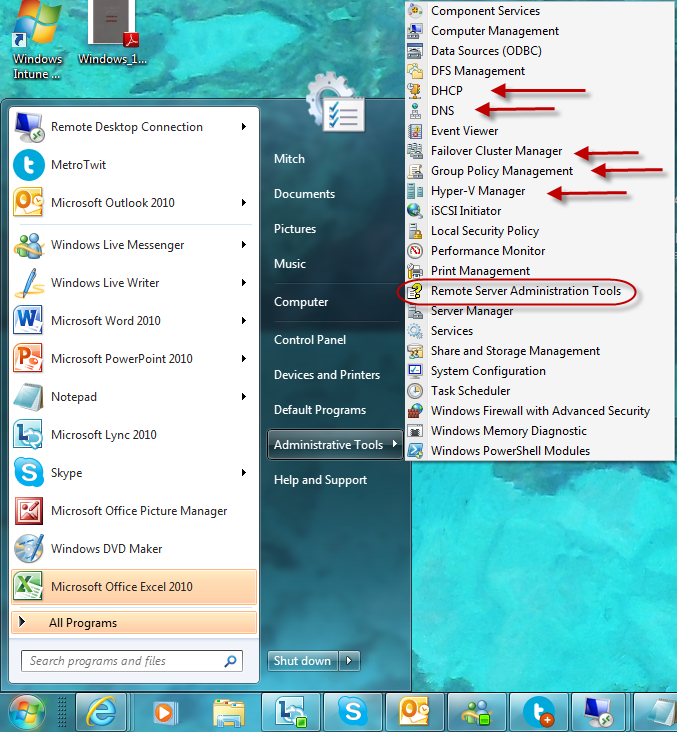

It will take a couple of minutes, but when it is done you are ready to start administering your servers from Windows 7… just click on the Start pearl, expand Administrative Tools, and the new consoles should be there.

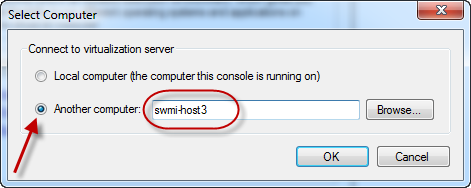

You can load any of them up (for this example we will use Hyper-V Manager) and you have… nothing.  However you can right-click on Hyper-V Manager in the Navigation pane, and click Connect to Server…

SNAGHTML56bb7c6SNAGHTML56ceecd

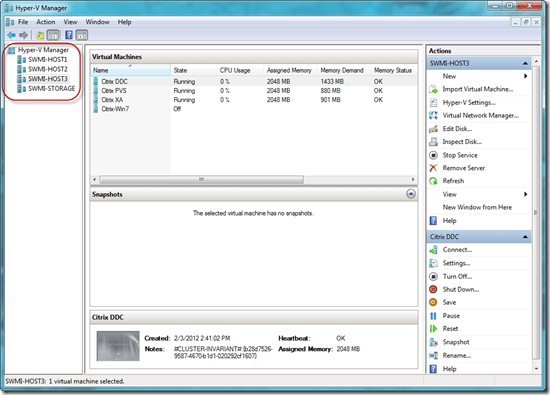

You can add multiple remote servers to the same MMC console (seen below), including full installations of Windows Server, as well as Server Core installations and (in the case of Hyper-V hosts) Windows Hyper-V Server, which have to be managed remotely as they have no graphical user interface (GUI).

SNAGHTML5702651

So go ahead… manage your servers from your desktop without ever having to leave your office/cubical/desk/cafeteria.  Wherever you like to work from!
